Data Visualization
Sections 2.0 - 2.3

Today’s goals


  1. Create a scatterplot
  2. Properly describe a scatterplot
  3. Change aesthetics such as color and shape in your plot
  4. Solve overplotting issues

Artwork by @allison_horst

The Grammar of Graphics

Defines a set of rules for constructing statistical graphics by combining different types of layers.

Layer Function Explanation
Data ggplot( ) initialize plot and define dataset first
Aesthetics aes( ) how variables are mapped
Geometries geom_*( ) how data is conveyed
Facets facet_*( ) separates plots by categories
Statistics stat_*( ) statistical transformations
Coordinates coord_*( ) customize coord system
Theme theme( ) customize non-data components


Only the first three layers are essential components that must be defined when building a graphic.

5NG#1: Scatterplots


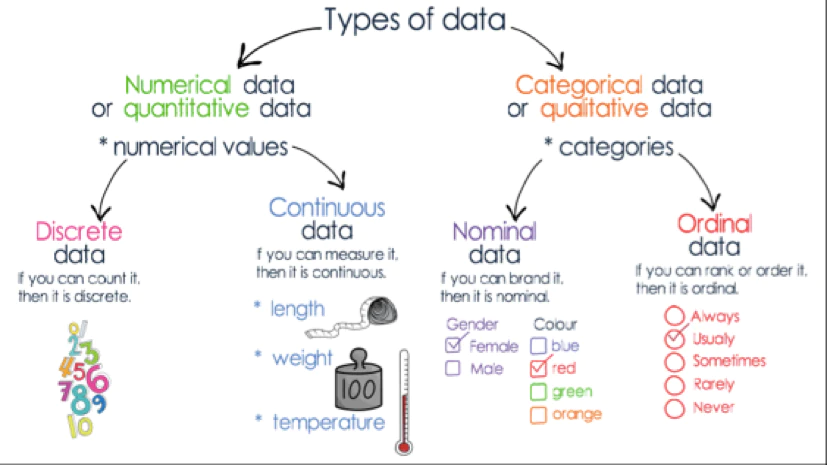

Scatterplots allow you to visualize the relationship between 2 numerical variables.


Scatterplot syntax in R:

ggplot(data= my_data, mapping = aes(x = var1, y = var2)) +
  geom_point()


Scatterplot language: Construct a scatterplot of Y by X.

5NG#1: Scatterplots

When describing scatterplots…

  • Look for pattern going from left to right.
  • Classify association as positive, negative, or no association.
  • Classify strength of association: strong, moderate, weak.
  • Describe overall pattern: linear, nonlinear, etc.
  • Check for overplotting issues.

The Palmer Penguins Dataset:

library(palmerpenguins)
glimpse(penguins)
Rows: 344
Columns: 8
$ species           <fct> Adelie, Adelie, Adelie, Adelie, Adelie, Adelie, Adel…
$ island            <fct> Torgersen, Torgersen, Torgersen, Torgersen, Torgerse…
$ bill_length_mm    <dbl> 39.1, 39.5, 40.3, NA, 36.7, 39.3, 38.9, 39.2, 34.1, …
$ bill_depth_mm     <dbl> 18.7, 17.4, 18.0, NA, 19.3, 20.6, 17.8, 19.6, 18.1, …
$ flipper_length_mm <int> 181, 186, 195, NA, 193, 190, 181, 195, 193, 190, 186…
$ body_mass_g       <int> 3750, 3800, 3250, NA, 3450, 3650, 3625, 4675, 3475, …
$ sex               <fct> male, female, female, NA, female, male, female, male…
$ year              <int> 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007…

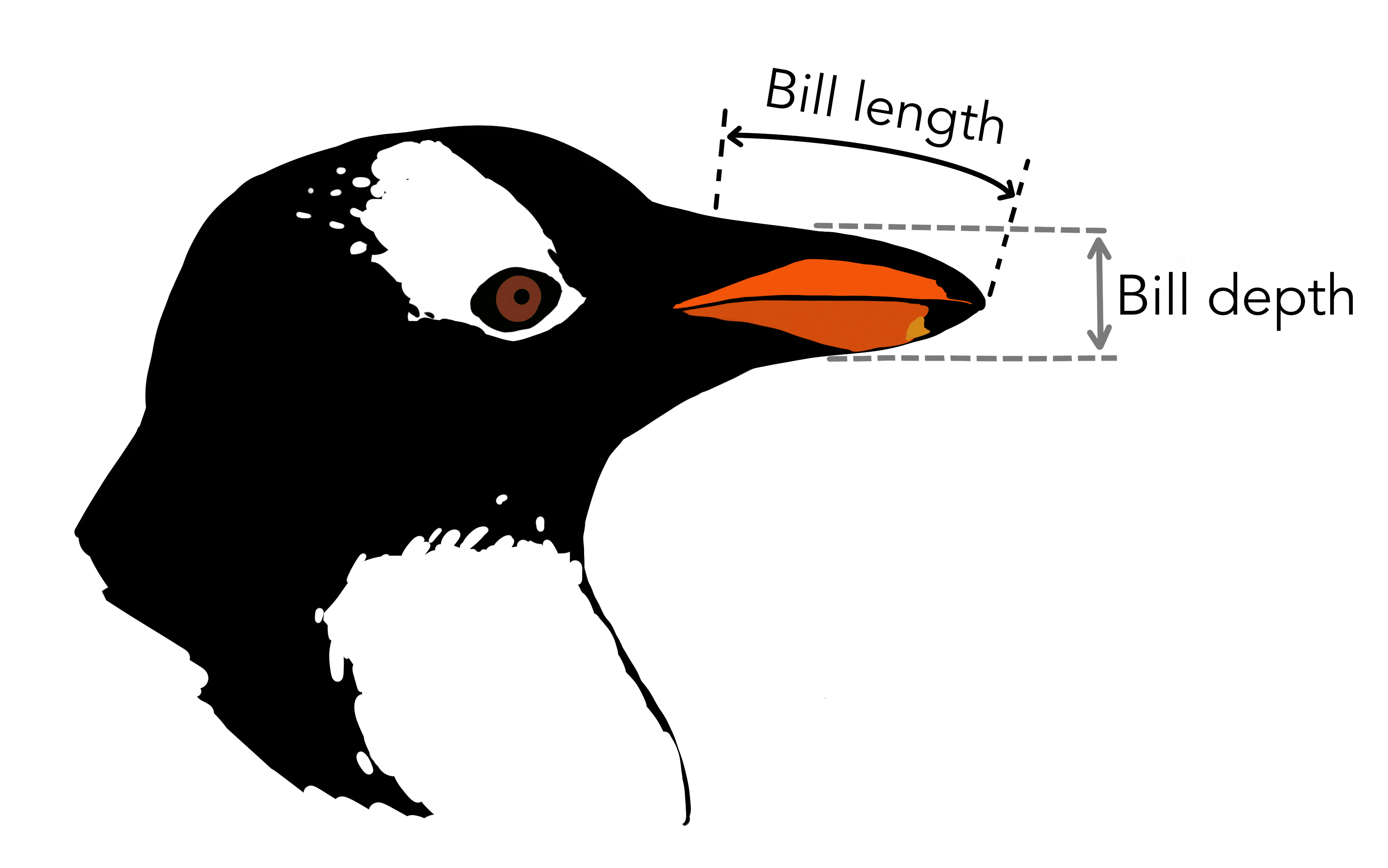

Artwork by @allison_horst

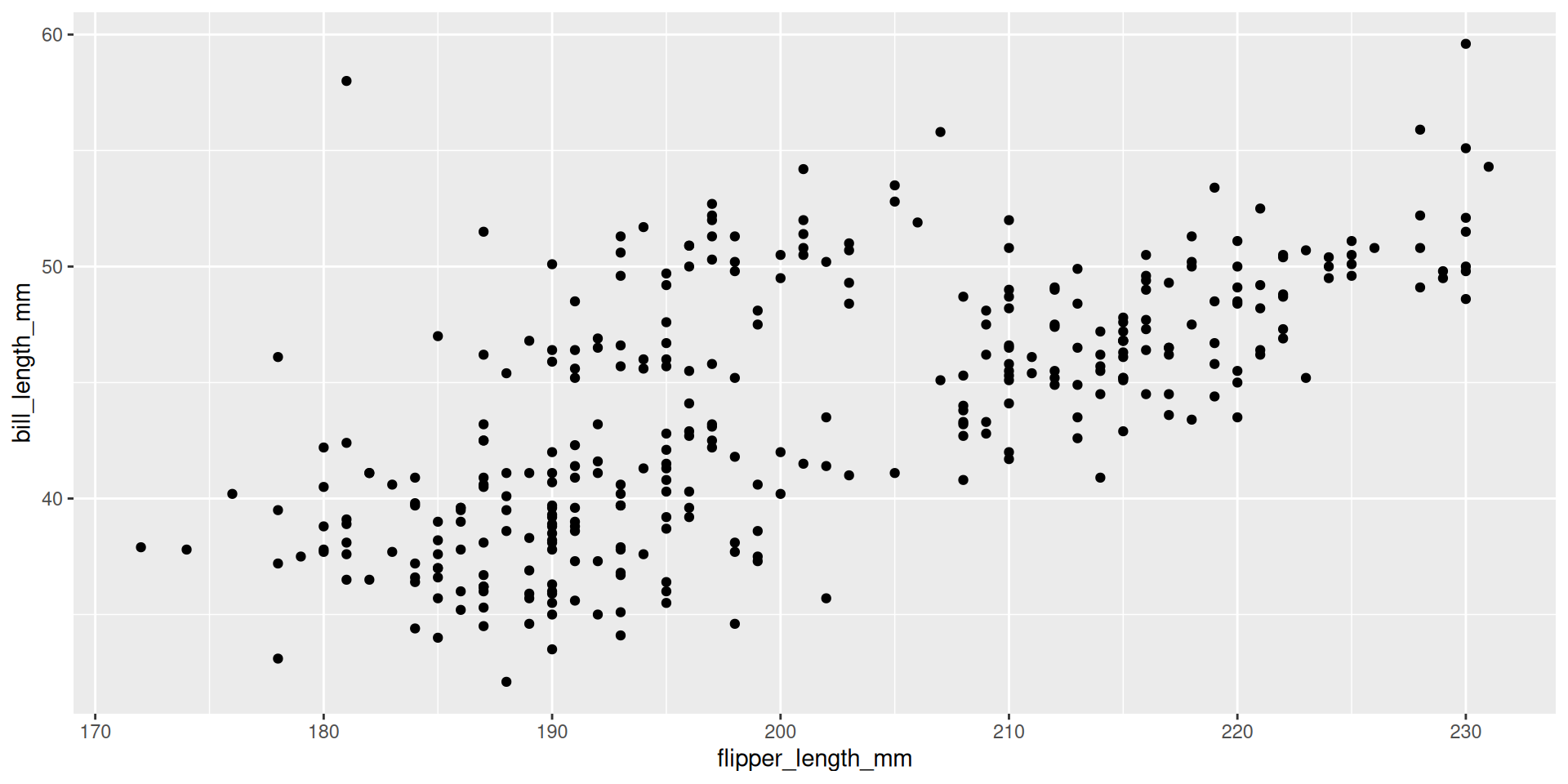

Example 1: Describing scatterplots

ggplot(penguins, aes(x=flipper_length_mm, y=bill_length_mm)) +
  geom_point()

Fig A
glimpse(penguins)
Rows: 344
Columns: 8
$ species           <fct> Adelie, Adelie, Adelie, Adelie, Adelie, Adelie, Adel…
$ island            <fct> Torgersen, Torgersen, Torgersen, Torgersen, Torgerse…
$ bill_length_mm    <dbl> 39.1, 39.5, 40.3, NA, 36.7, 39.3, 38.9, 39.2, 34.1, …
$ bill_depth_mm     <dbl> 18.7, 17.4, 18.0, NA, 19.3, 20.6, 17.8, 19.6, 18.1, …
$ flipper_length_mm <int> 181, 186, 195, NA, 193, 190, 181, 195, 193, 190, 186…
$ body_mass_g       <int> 3750, 3800, 3250, NA, 3450, 3650, 3625, 4675, 3475, …
$ sex               <fct> male, female, female, NA, female, male, female, male…
$ year              <int> 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007…

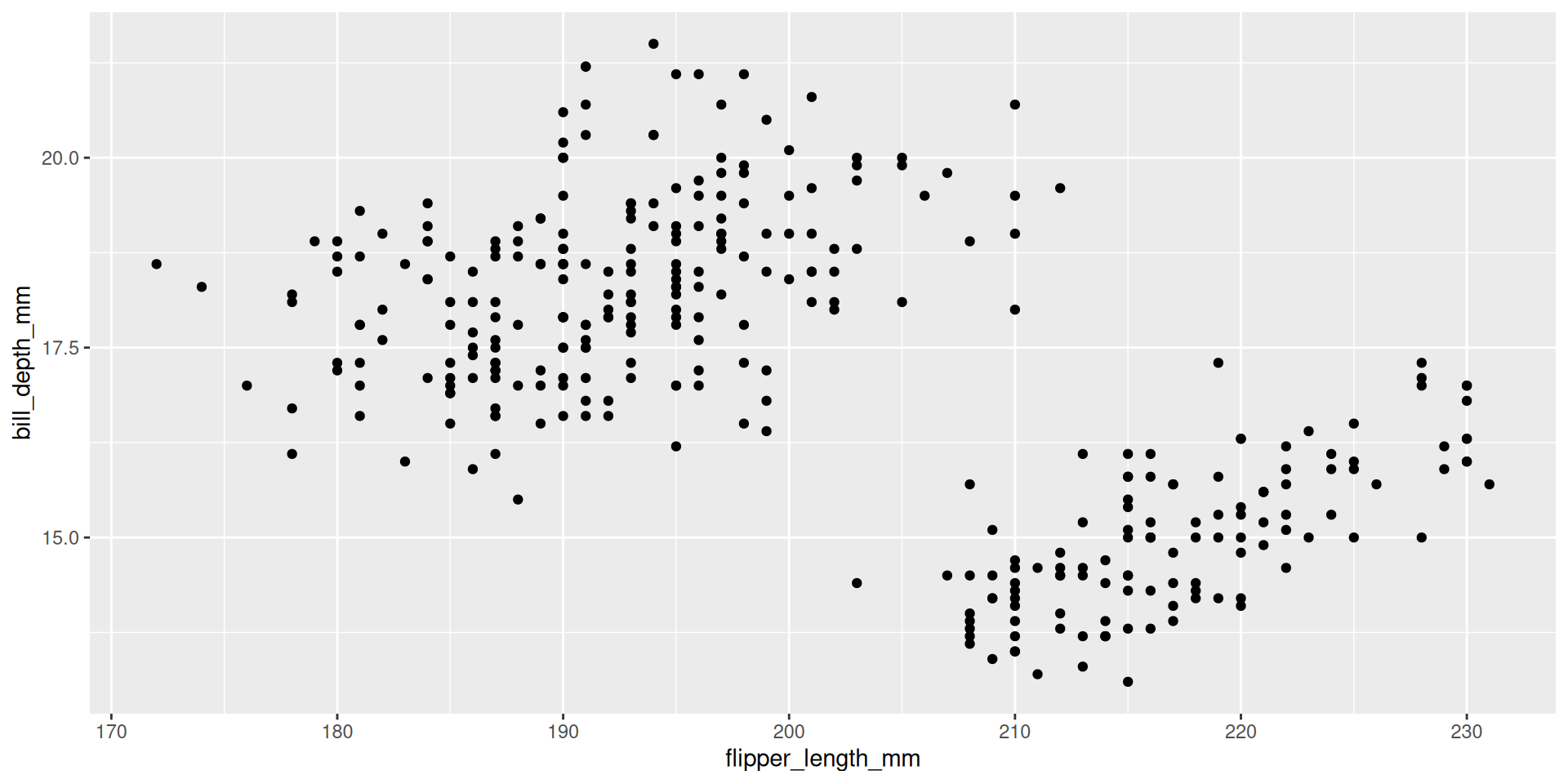

Example 2: Describing scatterplots

ggplot(penguins, aes(x=flipper_length_mm, y=bill_depth_mm)) +
  geom_point()

Fig B
glimpse(penguins)
Rows: 344
Columns: 8
$ species           <fct> Adelie, Adelie, Adelie, Adelie, Adelie, Adelie, Adel…
$ island            <fct> Torgersen, Torgersen, Torgersen, Torgersen, Torgerse…
$ bill_length_mm    <dbl> 39.1, 39.5, 40.3, NA, 36.7, 39.3, 38.9, 39.2, 34.1, …
$ bill_depth_mm     <dbl> 18.7, 17.4, 18.0, NA, 19.3, 20.6, 17.8, 19.6, 18.1, …
$ flipper_length_mm <int> 181, 186, 195, NA, 193, 190, 181, 195, 193, 190, 186…
$ body_mass_g       <int> 3750, 3800, 3250, NA, 3450, 3650, 3625, 4675, 3475, …
$ sex               <fct> male, female, female, NA, female, male, female, male…
$ year              <int> 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007…

Example 2: Describing scatterplots

ggplot(penguins, aes(x=flipper_length_mm, y=bill_depth_mm, color = sex)) +
  geom_point()

Fig C
glimpse(penguins)
Rows: 344
Columns: 8
$ species           <fct> Adelie, Adelie, Adelie, Adelie, Adelie, Adelie, Adel…
$ island            <fct> Torgersen, Torgersen, Torgersen, Torgersen, Torgerse…
$ bill_length_mm    <dbl> 39.1, 39.5, 40.3, NA, 36.7, 39.3, 38.9, 39.2, 34.1, …
$ bill_depth_mm     <dbl> 18.7, 17.4, 18.0, NA, 19.3, 20.6, 17.8, 19.6, 18.1, …
$ flipper_length_mm <int> 181, 186, 195, NA, 193, 190, 181, 195, 193, 190, 186…
$ body_mass_g       <int> 3750, 3800, 3250, NA, 3450, 3650, 3625, 4675, 3475, …
$ sex               <fct> male, female, female, NA, female, male, female, male…
$ year              <int> 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007…

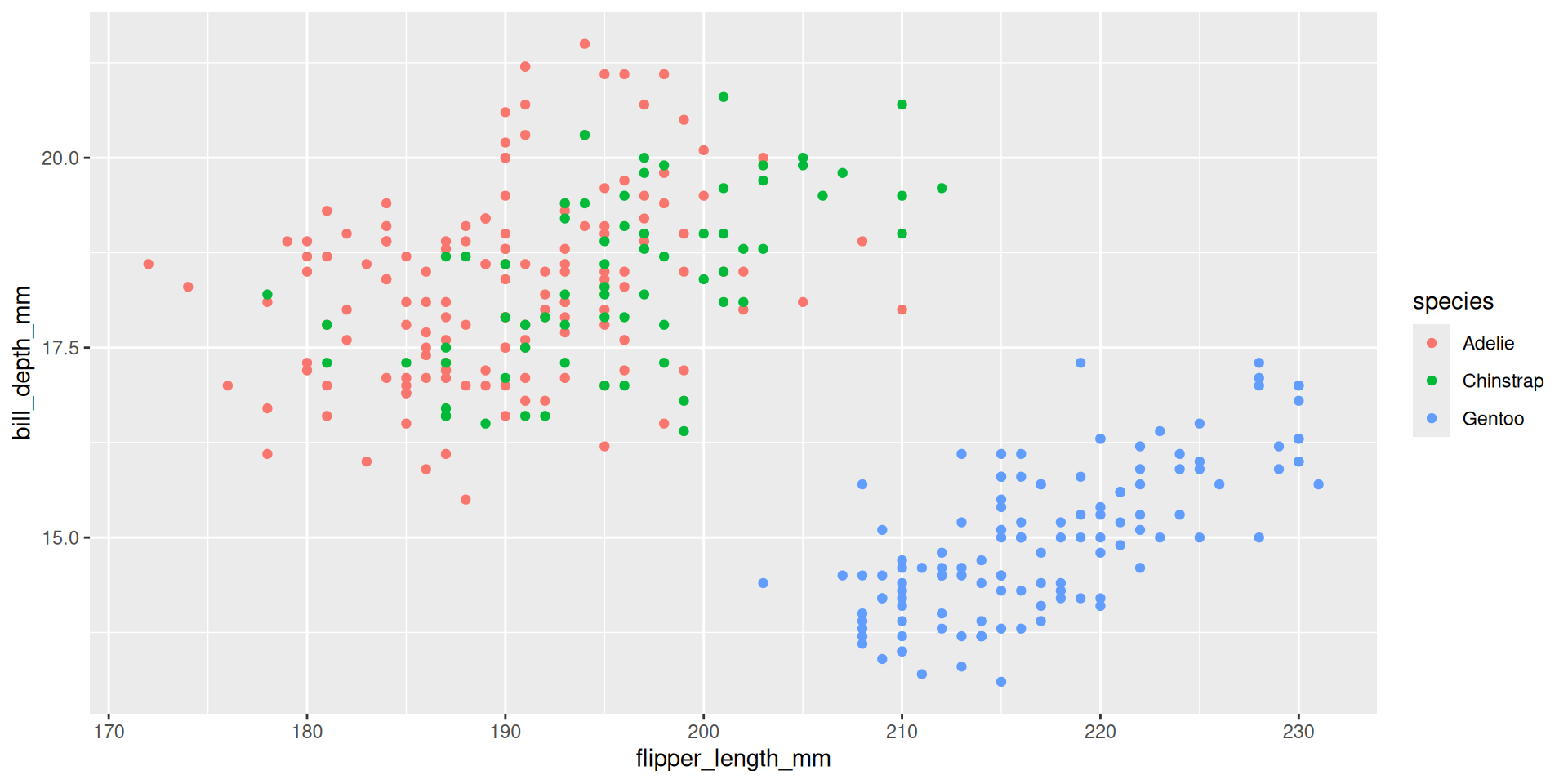

Example 2: Describing scatterplots

ggplot(penguins, aes(x=flipper_length_mm, y=bill_depth_mm, color = species)) +
  geom_point()

Fig D
glimpse(penguins)
Rows: 344
Columns: 8
$ species           <fct> Adelie, Adelie, Adelie, Adelie, Adelie, Adelie, Adel…
$ island            <fct> Torgersen, Torgersen, Torgersen, Torgersen, Torgerse…
$ bill_length_mm    <dbl> 39.1, 39.5, 40.3, NA, 36.7, 39.3, 38.9, 39.2, 34.1, …
$ bill_depth_mm     <dbl> 18.7, 17.4, 18.0, NA, 19.3, 20.6, 17.8, 19.6, 18.1, …
$ flipper_length_mm <int> 181, 186, 195, NA, 193, 190, 181, 195, 193, 190, 186…
$ body_mass_g       <int> 3750, 3800, 3250, NA, 3450, 3650, 3625, 4675, 3475, …
$ sex               <fct> male, female, female, NA, female, male, female, male…
$ year              <int> 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007…

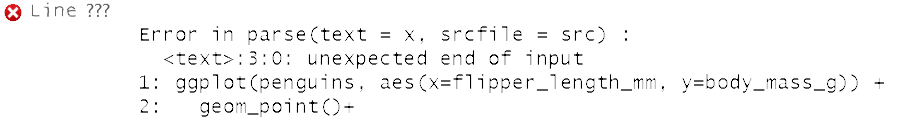

Common Coding Errors

ggplot(penguins, aes(x=flipper_length_mm, y=bill_depth_mm)) +
  geom_point() +

Plus sign to nowhere. What would happen if you type “1+2+” into a calculator? An error!

ggplot(penguins, aes(x=flipper_length_mm, y=bill_depth_mm) +
  geom_point()

All parenthesis must me closed!

ggplot(Penguins, aes(x=Flipper_length_mm, y=Bill_depth_mm) +
  geom_point()

R is case sensitive! Make sure the data and variable names match EXACTLY.
